Import Data from Databricks to Insider One

This integration automatically synchronizes customer data from Databricks to Insider One. The process involves authenticating with Databricks, selecting relevant data tables, mapping data fields, and configuring synchronization settings.

Essentials before Integration

Before you begin, ensure the following prerequisites are met to enable a smooth and secure data import from Databricks to Insider One.

• You must have a Databricks account with account admin privileges to set up the integration.

• Ensure you have access to the catalog, schema, and tables that contain user and event data you want to sync with Insider One.

• Insider One Databricks connector supports AWS, Azure, and Google Cloud platforms.

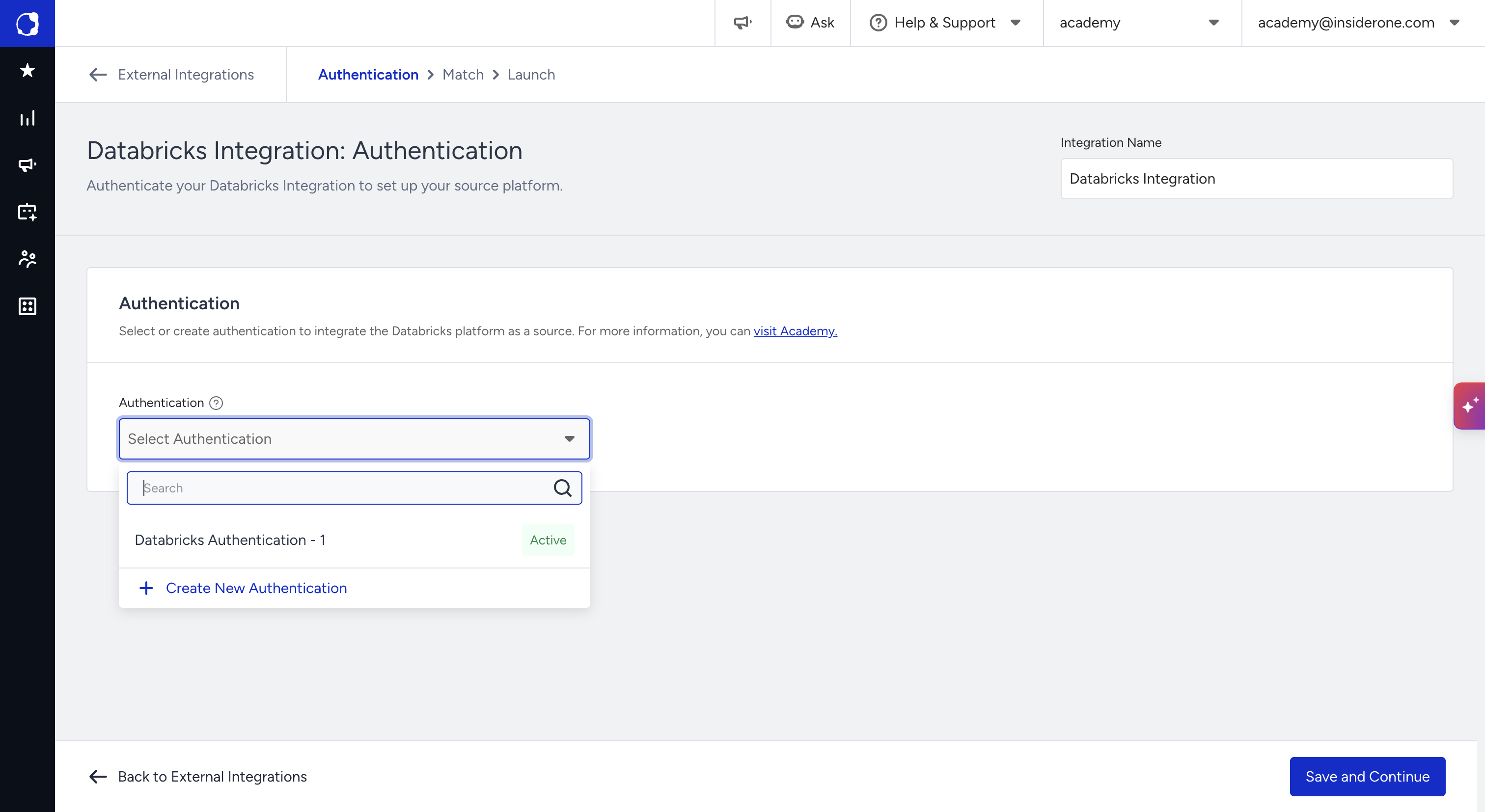

Step 1: Create Databricks Source Integration

1. Navigate to Components > Integrations > External Integrations on Insider One’s InOne panel.

2. Select the Databricks integration and create a Databricks Source Integration.



3. In the Authentication step, select an authentication with the Active status from the Authentication dropdown, or click Create New Authentication to create one. Then, click Save and Continue.



   To learn how to create a Databricks authentication, refer to Databricks Authentication. To learn how to manage your authentications, refer to Authentications.

Step 2: Enable Change Data Feed for your table

1. You should enable Change Data Feed (CDF) for the table you share with Insider One to ensure integration works. You can use the following command to execute.

• Enable CDF when creating a table:

CREATE TABLE my_table (

   id INT,

   name STRING,

   age INT

)

USING DELTA

TBLPROPERTIES (delta.enableChangeDataFeed = true);

• Enable CDF for an existing table:

ALTER TABLE my_table

SET TBLPROPERTIES (delta.enableChangeDataFeed = true);

Refer to Databricks’ documentation for further information.

Step 3: Select your Table

Choose the catalog, schema, and table you want to sync with Insider One.

Keep in mind:

• You can select only one table per integration. If you need more, create separate integrations.

• The table must be a Delta table. Refer to Databricks’ guide for instructions on converting other tables to Delta.

• The table must have Change Data Feed (CDF) enabled. Refer to the Step 2 to learn how to enable CDF.

• Views can’t be selected; you must select the tables.

Step 4: Map your Data

1. Map the column that represents the identifier to insert data into Insider One.



2. Turn on the Sync Attributes and/or Events sections according to your data in your selected table to import.

3. To sync the attributes, select the column that represents attributes with your attributes in Insider One.



4. To sync the Events:

   1. Select the column that represents the event name in your table.

   2. Select the column that represents the event timestamp in your table.

   3. Select the column that represents event parameters in your table.

If you send events with the same name and timestamp, Insider One treats them as duplicates and ignores them. Therefore, avoid sending different events with identical names and timestamps.

Event names must follow the same naming convention as the Upsert User Data API. Event names that do not match this format will not be processed. Refer to Create a Custom Event for further information.

Refer to Default Attribute, Event & Parameter Data Mapping Table for required event parameters.

Data Type Matching

Ensure that the data types in Databricks and Insider One are aligned. Use the table below to check the correct data type mappings.

Eligible Databricks column types are ARRAY<STRUCT<...>> and VARIANT. ARRAY<MAP<...>> and other nested types are not eligible.

VARIANT requires Databricks Runtime 15.3+ and is unavailable on Iceberg v2 tables.

Mapping array-of-object (nested) columns

You can map a nested column to an Array of Objects attribute, such as order lines, subscriptions, or preference objects.

Array of Objects columns can be mapped only to attributes. You cannot map them to identifiers or event parameters.

Before you map the column:

1. Create the Array of Objects attribute first. Go to InOne > Components > Attributes and Events and define each object key and its data type. Refer to Create an Array of Objects Attribute.

   Supported key types include String, Number, Date, Boolean, URL, String Array, Number Array, and nested Object with up to 2 nesting levels.

2. Match key names and types to your source exactly. Each object key is parsed independently. If a key name or data type does not match the registered schema, correctly mapped keys are still stored, while the mismatched key is skipped without an error or warning.

   For example, if the attribute keys are sku, price and qty, the incoming object {"sku":"A","price":10,"qty":1,"color":"red"} is stored as {"sku":"A","price":10,"qty":1}.

   If an array contains more than 50 objects, Insider One stores the first 50 objects and drops the rest. The cell is not counted as failed and no warning is shown.

3. Make sure each cell contains a JSON array of objects. Insider One rejects the cell, and counts it against the sync run's success rate, in these cases:

   • The value is not an array (for example a single object, a scalar value, or malformed JSON).

   • The array contains an element that is not an object, for example [{"sku":"A"}, 7].

   • The objects are nested deeper than 2 levels, or an object contains another array of objects.

   • A string value is longer than 500 characters.

   • The cell is larger than 1 MiB.

   A rejected cell skips only that attribute. The rest of the row is still imported.

Before syncing, confirm that each key name and data type matches the source. After a test sync, review several user profiles to verify that all expected objects and keys were ingested. Because mismatched keys and objects exceeding the supported limit are skipped without an error or warning, a test sync helps you confirm the final result.

Each attribute supports up to 50 objects, 20 keys per object, 2 nesting levels, and 500 characters per string value.

Default Attribute, Event & Parameter Data Mapping Table

If you have Purchase Event in your Databricks table, please make sure to;

• If in a basket, there are more than single item, make sure to add those as seperated rows into your Databricks table.

• Include e_guid(event_group_id) parameter for each purchase event. This is needed to connect different products to single cart

Refer to Attributes and Events for further information on all default events and attributes.

If your data type in Databricks is a TIMESTAMP format, the specific date format is not critical. Insider One automatically converts any datetime format that is accepted by Databricks.

Step 6: Launch your Integration

Select your Sync Frequency and launch your integration.

The first sync imports all data from the table. Subsequent syncs retrieve only the rows that have changed.

Limitations

• Views are not supported; you can only use tables to map your data.

• Each table must include an identifier.

• Custom attributes or event parameters must be predefined in Insider One (via the Attributes and Events page).

• For Purchase Events:

  • Add one row per product in a basket.

  • Include e_guid (event_group_id) to link multiple rows to a single cart.

• The synchronization process does not support DELETE operations. If a record is deleted from your Databricks table, the corresponding data will not be removed from Insider One on the next sync.

• Event updates are not possible.

• Each row (user) must be under 350KB; rows exceeding this size will not be upserted.

• Incremental syncs above 400,000 rows are ingested with journey and data stream triggers suppressed. No data is lost and the sync still succeeds.

A single sync can process at most 1 billion rows.

• Initial (full) sync: the limit is the table's total row count.

• Subsequent (incremental) syncs: the limit is the total number of change records captured by Change Data Feed (CDF) between two syncs, not the table's current size. Since CDF records every change, a row updated multiple times is counted multiple times, so repeated or bulk updates between syncs can exceed 1 billion change records even when the table itself is much smaller.

If a sync exceeds this limit (rows on the initial sync, or CDF change records between two syncs), the sync is not processed and the integration is moved to Archived. If you expect to approach this, contact Insider One team before launching.

important

• If you modify the table schema (for example, by adding a new column), the integration will stop working.

• If you need to change the schema, we recommend creating a new integration instead.

  • Please note that a new integration will perform an initial full sync and import all data from the table. Therefore, it is best practice to include only the identifiers and the new fields you intend to send to Insider One.

Important: CDF Retention and VACUUM

Insider One's incremental sync reads change records from Delta Change Data Feed. When you run VACUUM on the source table, or when the table's CDF retention period elapses, change records older than the retention window are permanently removed on the Databricks side. Once removed, those changes cannot be recovered.

If Insider One's last successful sync watermark points to a CDF version that has been vacuumed:

• If some versions are vacuumed but newer versions remain readable, the next sync continues from the latest available version. The integration stays active, no error is shown, but any inserts and updates within the gap are permanently lost.

• If all CDF versions since the last sync have been vacuumed, the next sync ends with status no new data and reason CDF versions are vacuumed. The integration stays active.

Best practice:

• Keep CDF retention longer than the maximum expected interval between syncs.

• If the integration is going to be paused for an extended period, coordinate with Insider before resuming, and expect data loss for the paused window.

• For long-paused integrations, create a new integration to perform a fresh full snapshot.

Important: Source Object Deletion or Rename

If you delete, rename, or replace the catalog, schema, or table that an active integration is pointing at, the integration is automatically Archived from Active.

Once archived:

• All actionable items on the integration's pages are disabled.

• The existing column mapping is retained until the table is changed.

• The same table name becomes selectable for other integrations.

• An information card appears in the Before You Launch section of the integration.

• An email notification is sent if the integration was Active at the time of archival.

An archived integration cannot be reactivated against the same object. To resume syncing, create a new integration.

Data loss and duplication to be aware of while using CDF

• If a row is inserted and then deleted between two syncs, the delete is not captured and the row is still ingested into Insider One.

• Deletes never propagate on their own: removing a row in Databricks does not remove the record in Insider One.

• Updating a row that was already synced in a previous sync re-ingests it and can create duplicate events. Avoid modifying historical rows after they have been synced.

• Turning CDF off and back on loses every change made while it was off; the next sync does not deliver them.

Data Import Logic

During the Databricks → Insider One synchronization:

• If any identifier coming from Databricks is invalid, the entire record is not sent.

• If an attribute coming from Databricks is invalid, only that specific attribute is skipped.

• If an event parameter coming from Databricks is invalid, the entire event is excluded from processing.

• Ensure each event has a unique timestamp and avoid modifying rows that include historical event records after they have been successfully synced.

• If a single incremental sync exceeds the row limit set for your account, all rows are still ingested, but they do not trigger any webhooks, campaigns, or journeys.

Important: Insert/Delete Behavior Between Sync Runs

If a row is inserted after a sync run and then deleted before the next sync, Insider One will not capture the delete event.

However, if a row is inserted and then deleted between two sync runs, it will still be ingested into Insider One. This is because CDF captures both the insert and delete change records, and since both occur before the next sync, Insider One processes the insert event and imports the row even though it has already been deleted.

Important: Event Deduplication & Re-Ingestion Behavior

• Duplicate Detection Rule: Insider One treats events with the same event name and timestamp as duplicates.
  If multiple events with identical names and timestamps are sent within the same sync, only one will be processed and the others will be ignored.

• Avoid Updating Previously Synced Events: Do not update rows that were already consumed by Insider One in a previous sync.

  Updating these rows triggers re-ingestion, which may create duplicate events in Insider.

Recommendation: Ensure each event has a unique timestamp and avoid modifying rows which include historical event records after they have been successfully synced.

Frequently Asked Questions (FAQ)

Q: What permissions do I need in my Databricks account to set up the integration?
A: You need a Databricks account with account admin privileges to configure the necessary components like the Service Principal and permissions.

Q: Can I sync data from more than one Databricks table at a time?
A: No, you can only select one table per integration. If you need to sync data from multiple tables, you must create a separate integration for each one.

Q: What are the requirements for a Databricks table to be eligible for syncing?
A: The table must be a Delta table, and it must have the Change Data Feed (CDF) feature enabled.

Q: How often can I sync my data from Databricks to Insider One?

A: You can set the sync frequency to one of the following options:

• Every 15 minutes

• Every 30 minutes

• Every 45 minutes

• Hourly (at the beginning of every hour)

• Daily (at a specific time you choose)

Q: What happens if I try to map a custom attribute that doesn't exist in Insider One?
A: The integration will fail for that attribute. Create all custom attributes and event parameters in your Insider One account on the Attributes and Events page before you set up the mapping.

Q: What happens if I delete a record in my Databricks table? Will it be removed from Insider One?
A: No. The integration currently only processes additions and updates to records. If you delete a record in Databricks, the corresponding data will remain in Insider One and will not be removed during subsequent syncs.

Q: Which cloud platforms are supported?
A: Insider One Databricks connector supports AWS, Azure, and Google Cloud platforms.

Q: What should I do if a sync fails with a DATABRICKS_JAVA_HEAP_SPACE error?
A: This error indicates that the SQL warehouse does not have enough capacity to process the data. The integration moves to Action Required, and synchronization stops.

Increase the SQL warehouse size based on your table size and workload. Then, resolve the error from the Monitoring page to resume synchronization. The required warehouse size depends on the table size and workload, so a single minimum size does not apply to all integrations.
